Village Collection garage door construction

Technical Specifications

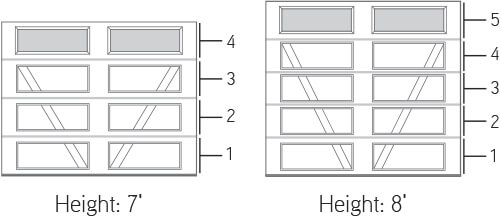

8’ high door layouts

The 8’ high doors are always built with 5 sections

Construction specifications, available inlay layouts and colors

Village Collection^† doors are available in three types of construction which correspond to the Vantage, Regal N24 and Regal N25 doors.

	Vantage1	Regal N24	Regal N25
Construction	Triple-layer Polystyrene Steel	Single layer OR Non-insulated Heavy duty steel	Single layer OR Non-insulated Steel
Inlays Flat Base
Inlays Plank Base
Colors
	White	White	White
	Sahara	Sahara	Sahara
	Almond	Almond	Almond
	Sandstone	Sandstone	Sandstone
	Terrastone	Terrastone
	Brown	Brown
	Dark Walnut, Faux Wood2	Dark Walnut, Faux Wood2
	Black Ice	Black Ice
	Charcoal	Charcoal
	Weathered Grey, Faux Wood2	Weathered Grey, Faux Wood2

¹The exterior surface of the Vantage has a light woodgrain finish with a stucco finish for the interior surface. Regardless of the color chosen for the exterior, the interior side of the door is always White (door, window frames, and inserts).
²Dark Walnut and Weathered Grey are uni-directional faux wood color patterns.

LAYOUTS (the configurations shown are in 8 'of height)

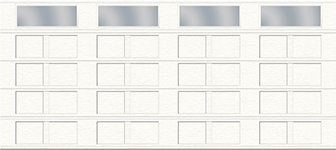

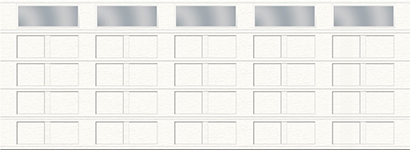

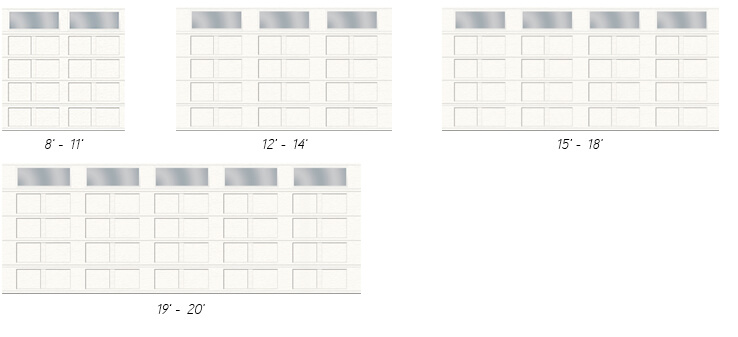

I-1 Layout, Flat Base (Vantage, Regal N24)

I-1 Layout, Flat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

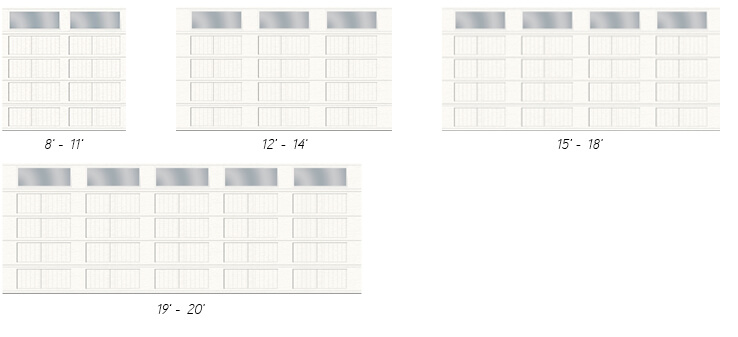

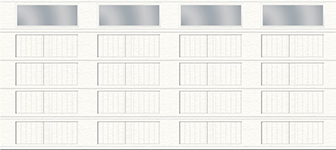

I-1 Layout, Plank Base (Vantage, Regal N24, Regal N25)

I-1 Layout, Plank Base (Vantage, Regal N24, Regal N25)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

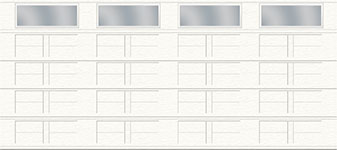

I-1 Layout, 2-Slat Base (Vantage, Regal N24)

I-1 Layout, 2-Slat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

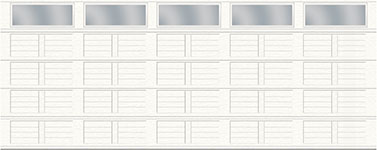

I-1 Layout, 4-Slat Base (Vantage, Regal N24)

I-1 Layout, 4-Slat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

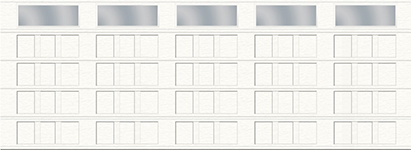

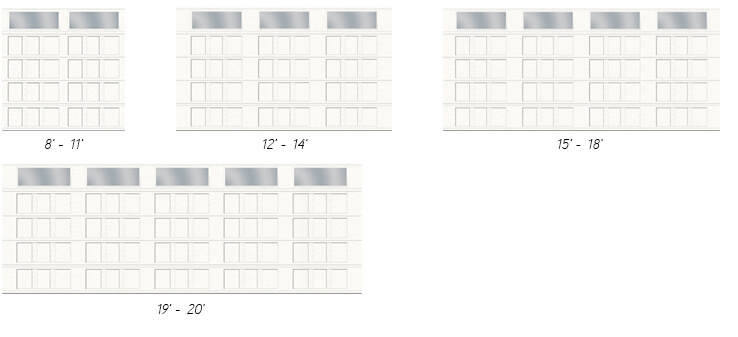

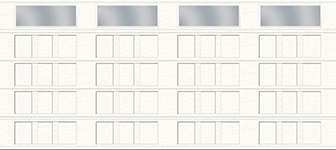

I-2 Layout, Flat Base (Vantage, Regal N24)

I-2 Layout, Flat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

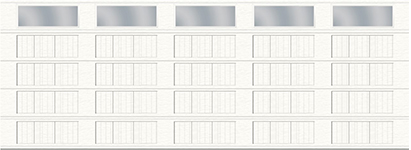

I-2 Layout, Plank Base (Vantage, Regal N24, Regal N25)

I-2 Layout, Plank Base (Vantage, Regal N24, Regal N25)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

I-2 Layout, 2-Slat Base (Vantage, Regal N24, Regal N25)

I-2 Layout, 2-Slat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

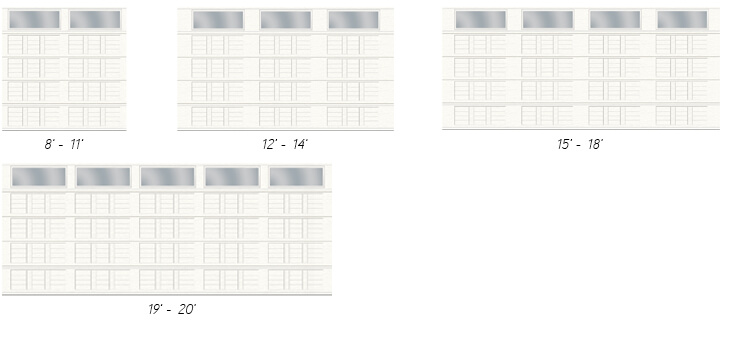

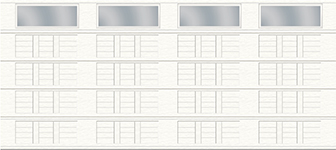

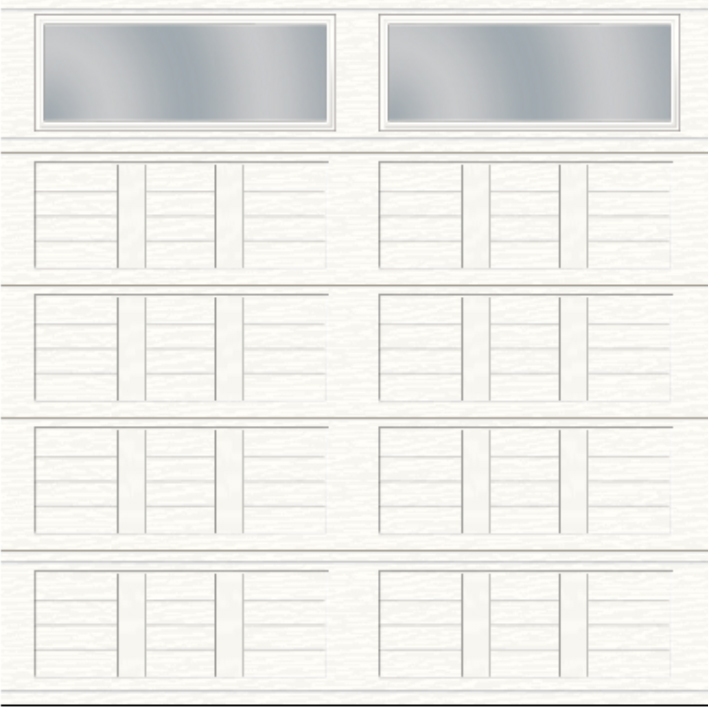

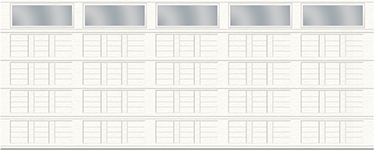

I-2 Layout, 4-Slat Base (Vantage, Regal N24, Regal N25)

I-2 Layout, 4-Slat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

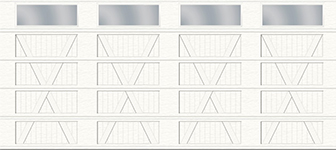

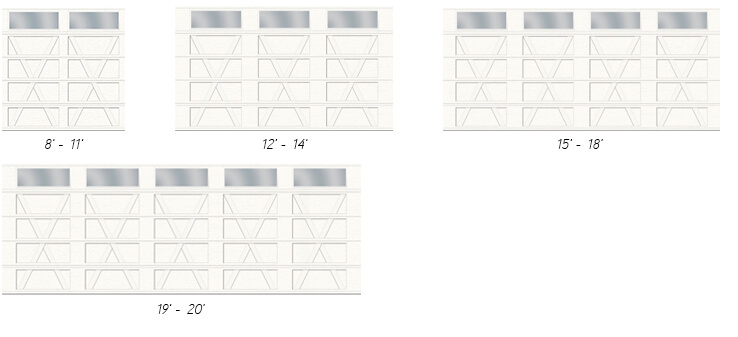

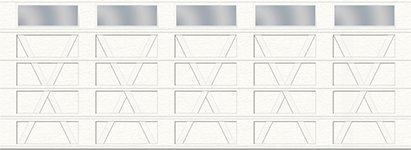

X Layout, Flat Base (Vantage, Regal N24)

X Layout, Flat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

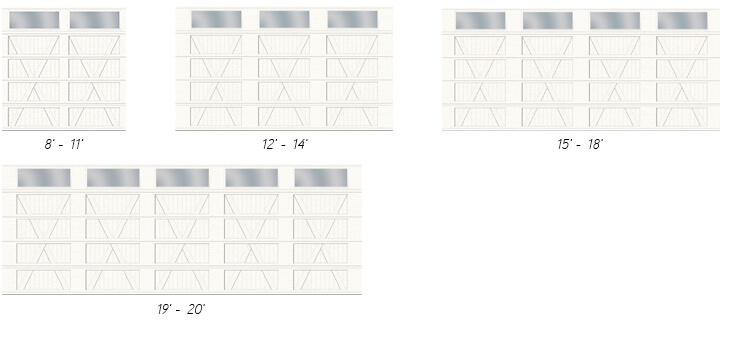

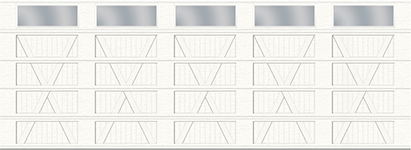

X Layout, Plank Base (Vantage, Regal N24, Regal N25)

X Layout, Plank Base (Vantage, Regal N24, Regal N25)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

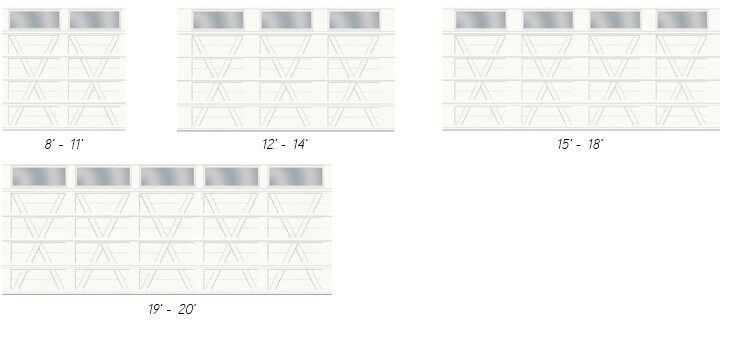

X Layout, 2-Slat Base (Vantage, Regal N24)

X Layout, 2-Slat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

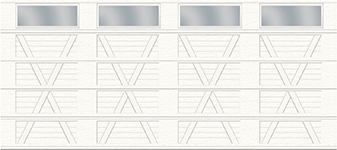

X Layout, 4-Slat Base (Vantage, Regal N24)

X Layout, 4-Slat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

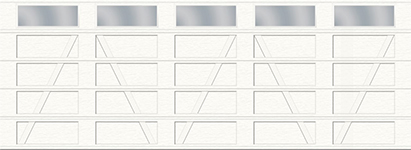

A Layout, Flat Base (Vantage, Regal N24)

A Layout, Flat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

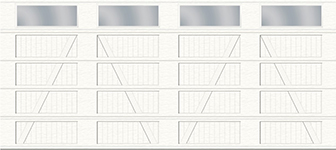

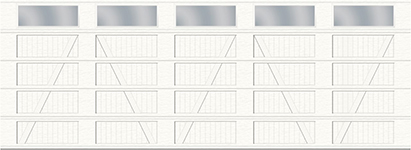

A Layout, Plank Base (Vantage, Regal N24, Regal N25)

A Layout, Plank Base (Vantage, Regal N24, Regal N25

8' to 11'

12' to 14'

15' to 18'

19' to 20'

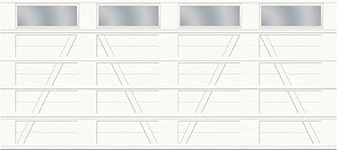

A Layout, 2-Slat Base (Vantage, Regal N24)

A Layout, 2-Slat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

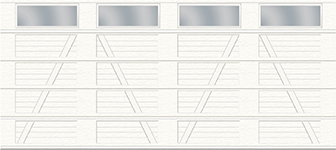

A Layout, 4-Slat Base (Vantage, Regal N24)

A Layout, 4-Slat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

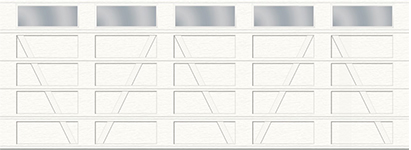

V Layout, Flat Base (Vantage, Regal N24)

V Layout, Flat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

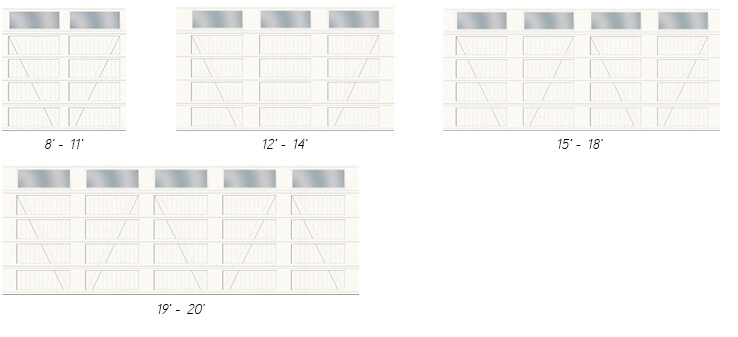

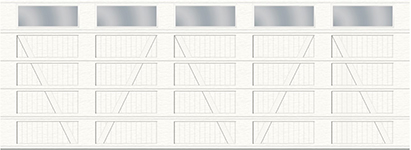

V Layout, Plank Base (Vantage, Regal N24, Regal N25)

V Layout, Plank Base (Vantage, Regal N24, Regal N25)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

V Layout, 2-Slat Base (Vantage, Regal N24)

V Layout, 2-Slat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

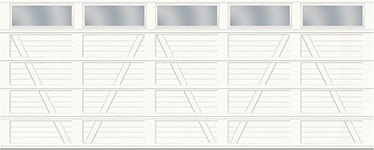

V Layout, 4-Slat Base (Vantage, Regal N24)

V Layout, 4-Slat Base (Vantage, Regal N24)

8' to 11'

12' to 14'

15' to 18'

19' to 20'

Vantage Construction

3 layers | Polystyrene
(Steel + Polystyrene + Steel)

1	26-gauge pre-painted galvanized steel for high durability
2	2” tongue-and-groove meeting rail to provide a weathertight seal between sections, and rails are hemmed the entire length of the section for added strength and safety
3	Polystyrene insulation pressure bonded between two layers of steel for energy efficiency
4	20-gauge white baked-on paint finish end stiles for a nice clean look
5	Full-length reinforcing plates to solidly attach hinges and struts

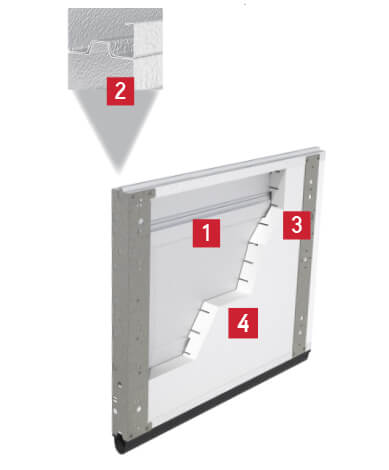

Regal N24 & Regal N25 Construction

2 layers (Steel + Polystyrene)

OR

Non-insulated

1	3 options of outside layer: steel, heavy duty steel or commercial grade steel for high durability
2	2” tongue-and-groove meeting rail to provide a weathertight seal between sections, and rails are hemmed the entire length of the section for added strength and safety
3	20-gauge galvanized end and center stiles to increase strength and durability
4	Polystyrene vinyl-backed insulation available as an option​

Get a quote for a
Village Collection door

^†Mid-America CSX garage door models with A, B, D and E layouts are now included in the Village Collection.
